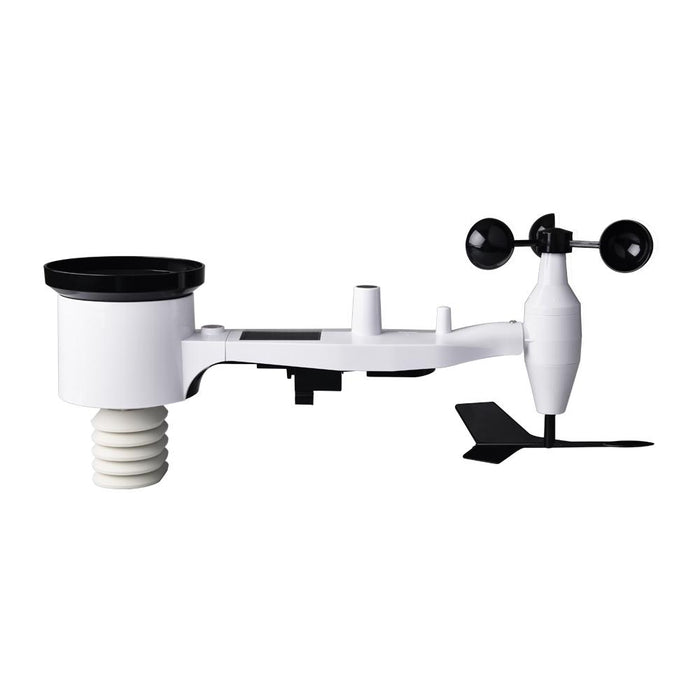

WS69 Wireless 7-in-1 Outdoor Sensor Array
WS69 Wireless 7-in-1 Outdoor Sensor Array
Features
Rain gauge; Wind speed and wind direction;
Temperature; Humidity; Solar light intensity and UV index;
Note:
Pole not included, pole diameter size recommendation: 1.2“-2” (can't exceed 2").
Compatible gateways / consoles (Wi-Fi and/or Cellular): GW1100/GW1200/GW2000/GW3000/WS6006/WS6210/HP2550/HP2560/HP3500/WS3800/WS3820/WS3900/WS3910/WN1920/WN1980/WN1820/WN1821/WN1900/WN1910/WS2910/WS2320/WN1700
Note:
1. The sensor may share the same channels with other sensors of the same type.
2. Some data is cloud-only and not available on compatible consoles.
3. Compatibility may change with product updates. Please refer to the latest compatibility table(at the bottom of the product page) or contact us for confirmation.
Specifications
| Measurement | Range | Accuracy | Resolution |
| Wind speed | 0m/s to 50m/s |
±1 m/s (speed < 10 m/s); ± 10% (speed ≥ 10 m/s) |
0.1m/s |
| Wind direction | 0° to 359° | ± 15° | 1° |
| Temperature | -40°C to 60°C | ±1°C (± 1.8°F) | 0.1°C (± 0.1°F) |
| Humidity | 1% to 99% | ±5% | 1% |
| Light | 0Klux to 200Klux | ±25% | 0.1Klux |
| UVI | 1~15 | ±2 | 1 |
| Rain | 0~9999 | ± 10% |
0.3 mm (for volume < 1,000 mm); 1 mm (for volume ≥ 1,000 mm |
Sensor (backup): 2 x AA 1.5V battery (not included)
Sensor solar panel (built-in): 6.5V/4mA
Transmission between gateway and sensor
Transmission distance in open field: 100 m (330 ft.)
RF frequency: 433/868/915 MHz depending on location
Updates on the gateway: 16s
Parts List
1* WS69 sensor
1* Wind speed cups (to be attached to outdoor sensor body)
1* Wind vane (to be attached to outdoor sensor body)
2* U-Bolts for mounting on a pole
4* Threaded nuts for U-Bolts (M5 size)
1* Metal mounting plate to be used with U-Bolts
1* Wrench for M5 bolts
Packaged information
Length * Width * Height: 440*165*265mm
Weight: 1800g
Battery: None
